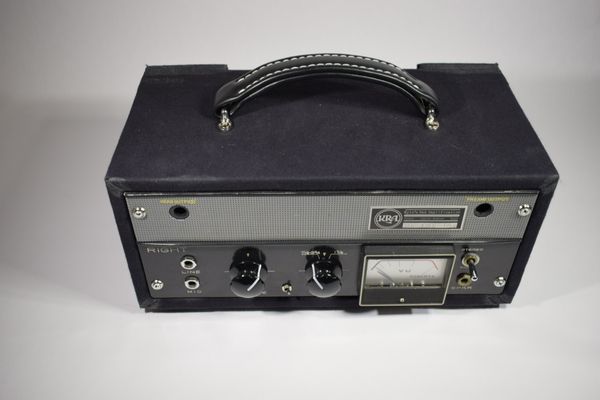

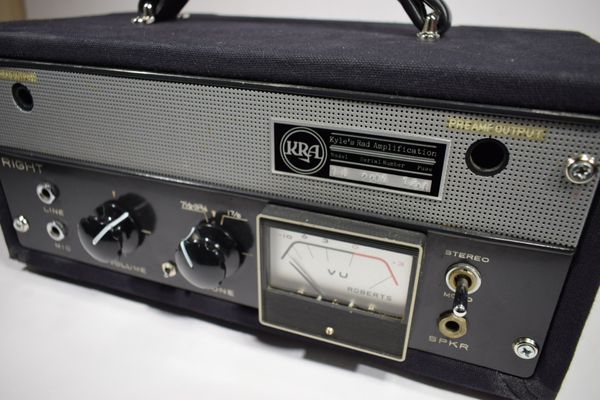

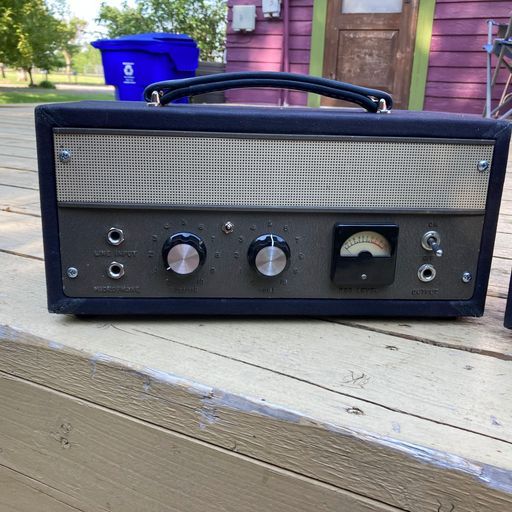

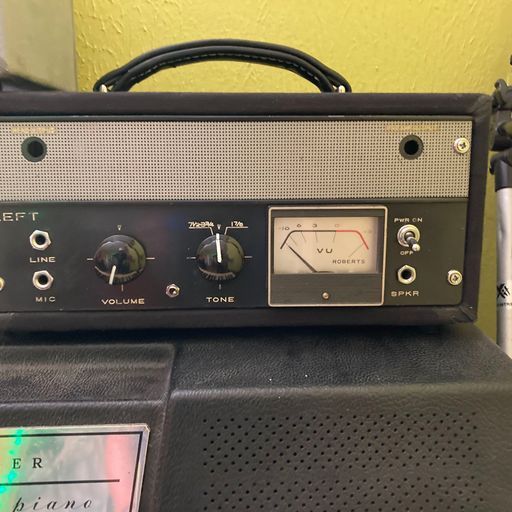

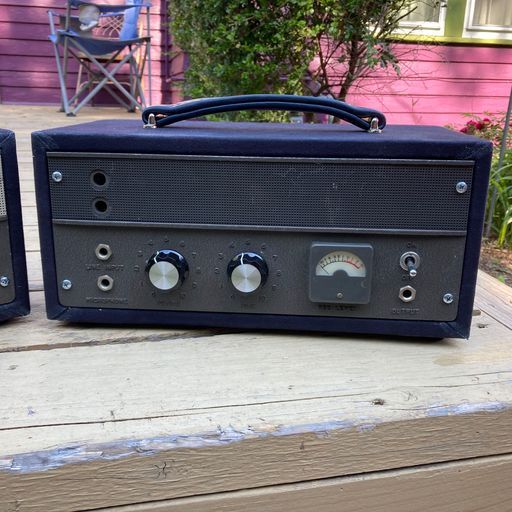

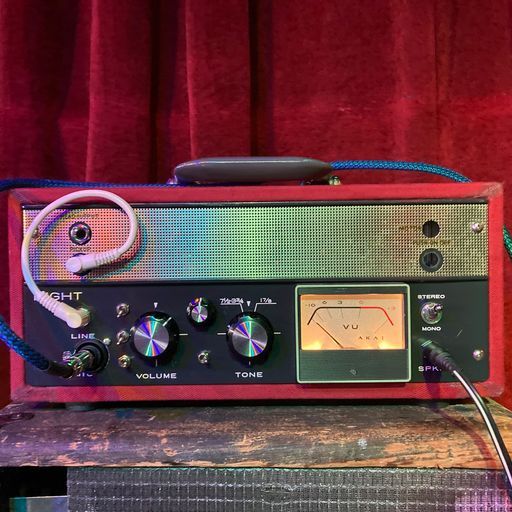

This model is a single channel, single ended, 5 watt all tube guitar amp head featuring volume and tone controls and a 3-way negative feedback switch. Guitar level and line level input are available at the left side of the amp, and an 8 ohm speaker jack is available at the right side of the amp. The tube lineup is a 12ax7 for the preamp, an el84

This model is a single channel, single ended, 5 watt all tube guitar amp head featuring volume and tone controls and a 3-way negative feedback switch. Guitar level and line level input are available at the left side of the amp, and an 8 ohm speaker jack is available at the right side of the amp. The tube lineup is a 12ax7 for the preamp, an el84 for the power amp, and a 6x4 for the rectifier. This amp also has a 3-way negative feedback (NFB) switch which gives it 3 breakup levels. To the right, the NFB is stock, yielding a clean tone that just starts to break up when the volume knob is dimed out. To the left, the NFB is reduced, causing the amp to break up sooner. And with the switch to the center, the NFB is disconnected, yielding a fat and hefty tone that breaks up early. At 5 watts output, you can crank this amp into distortion at reasonable volumes. Great mic’d up at the gig, really great in the studio.

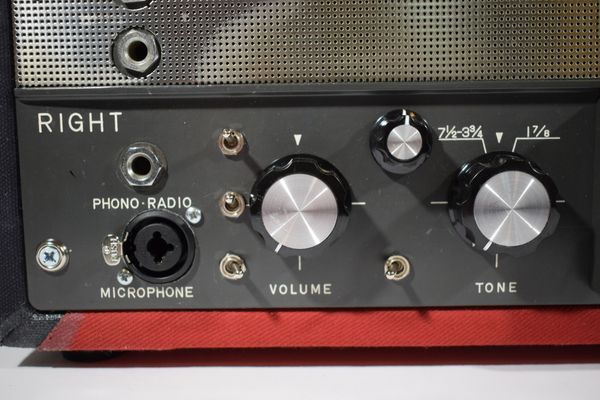

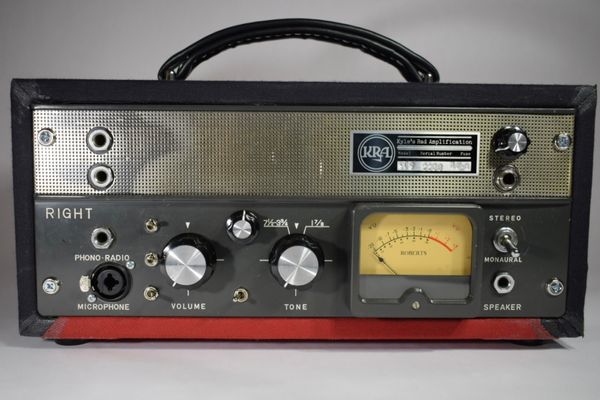

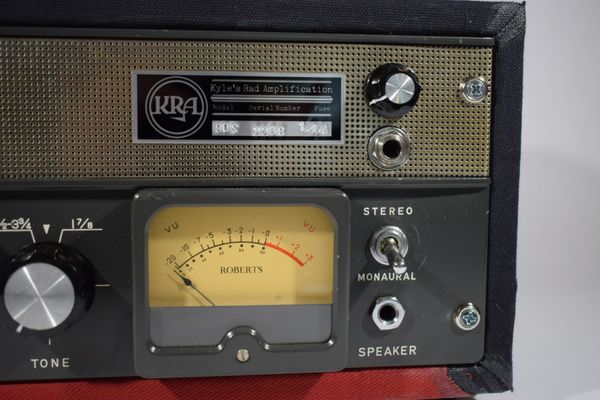

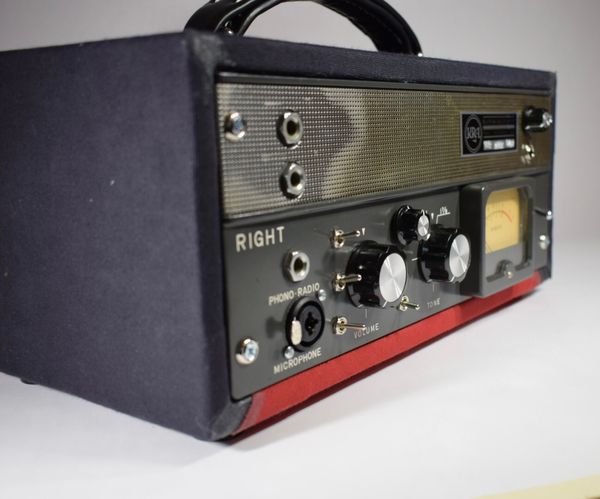

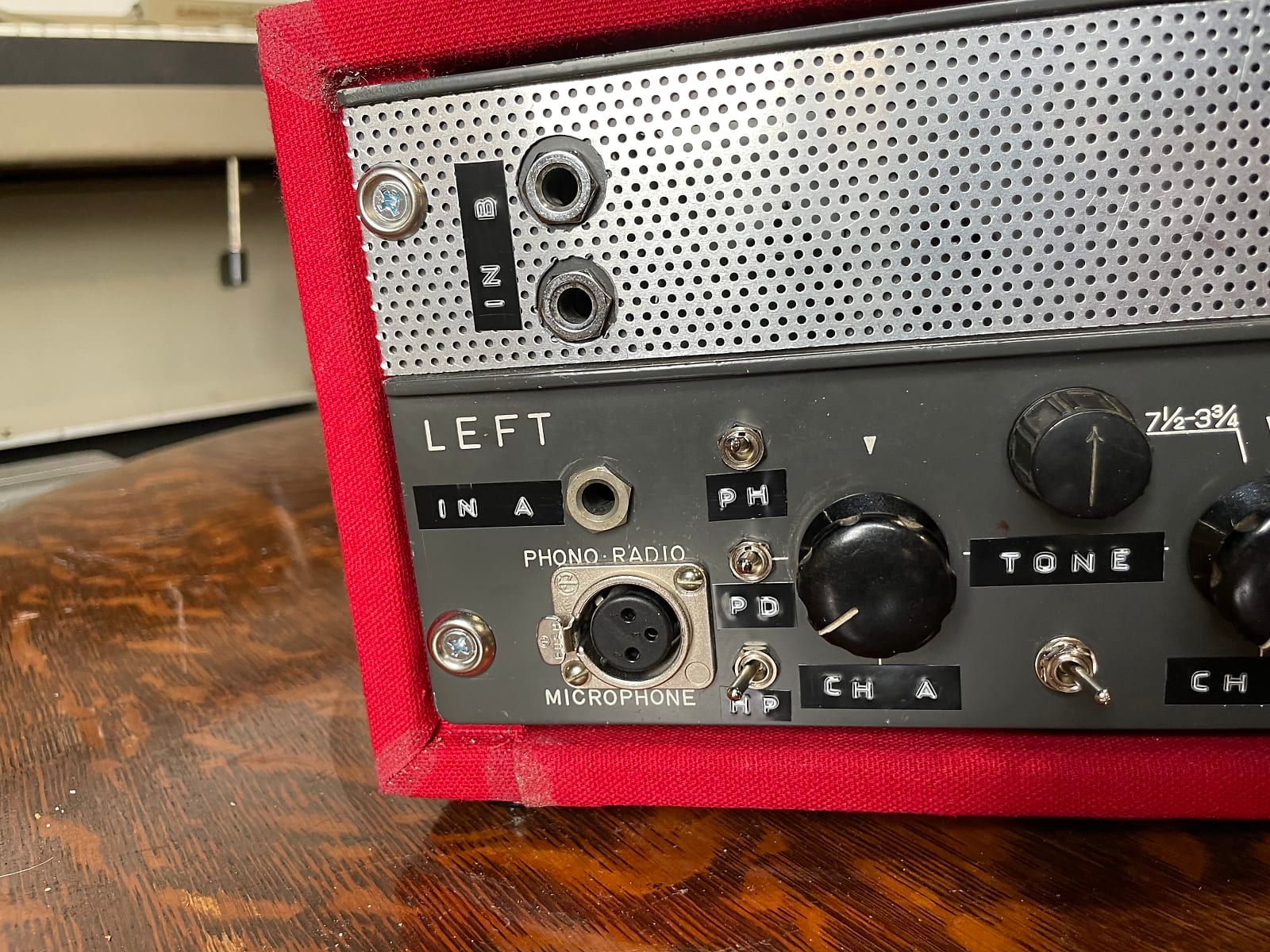

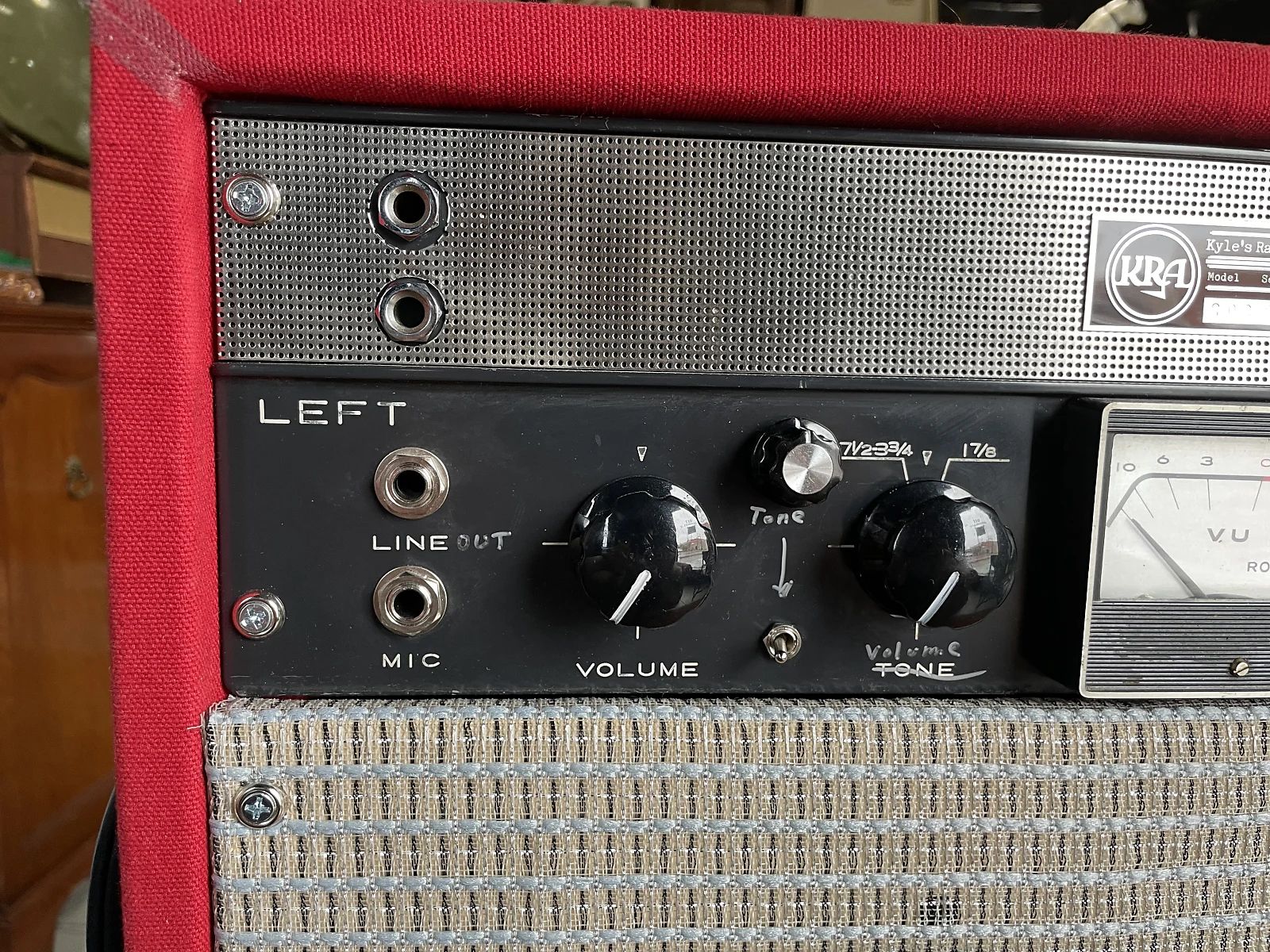

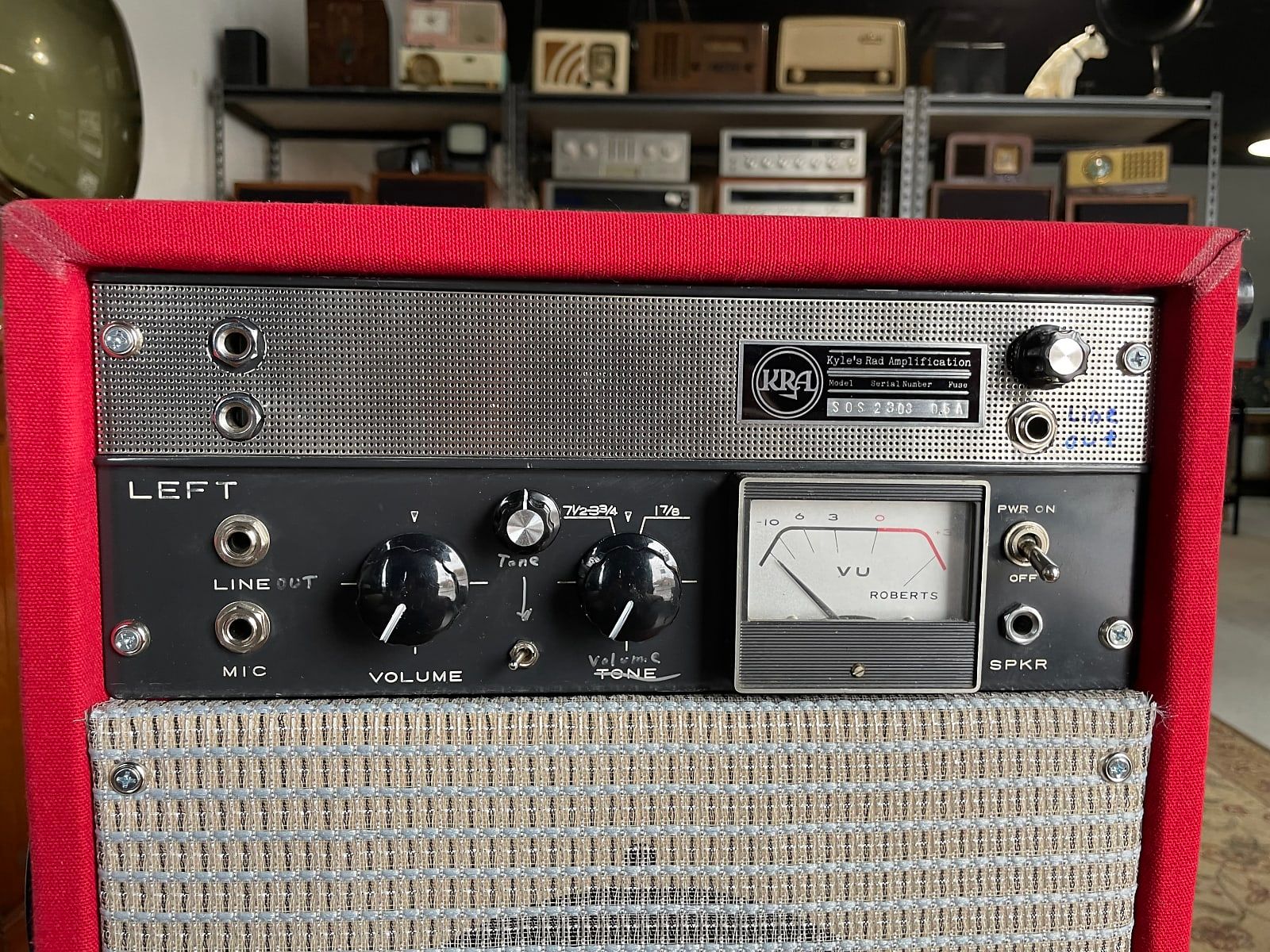

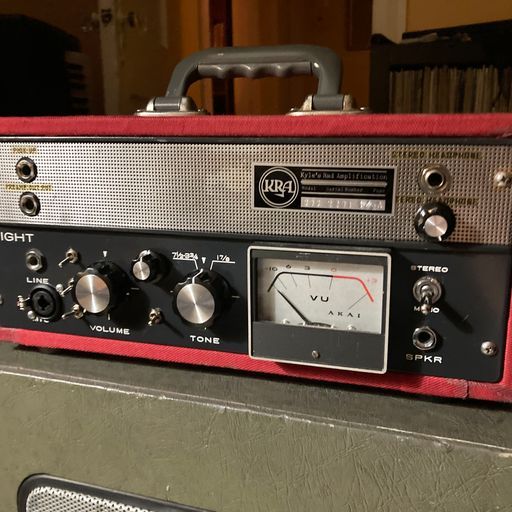

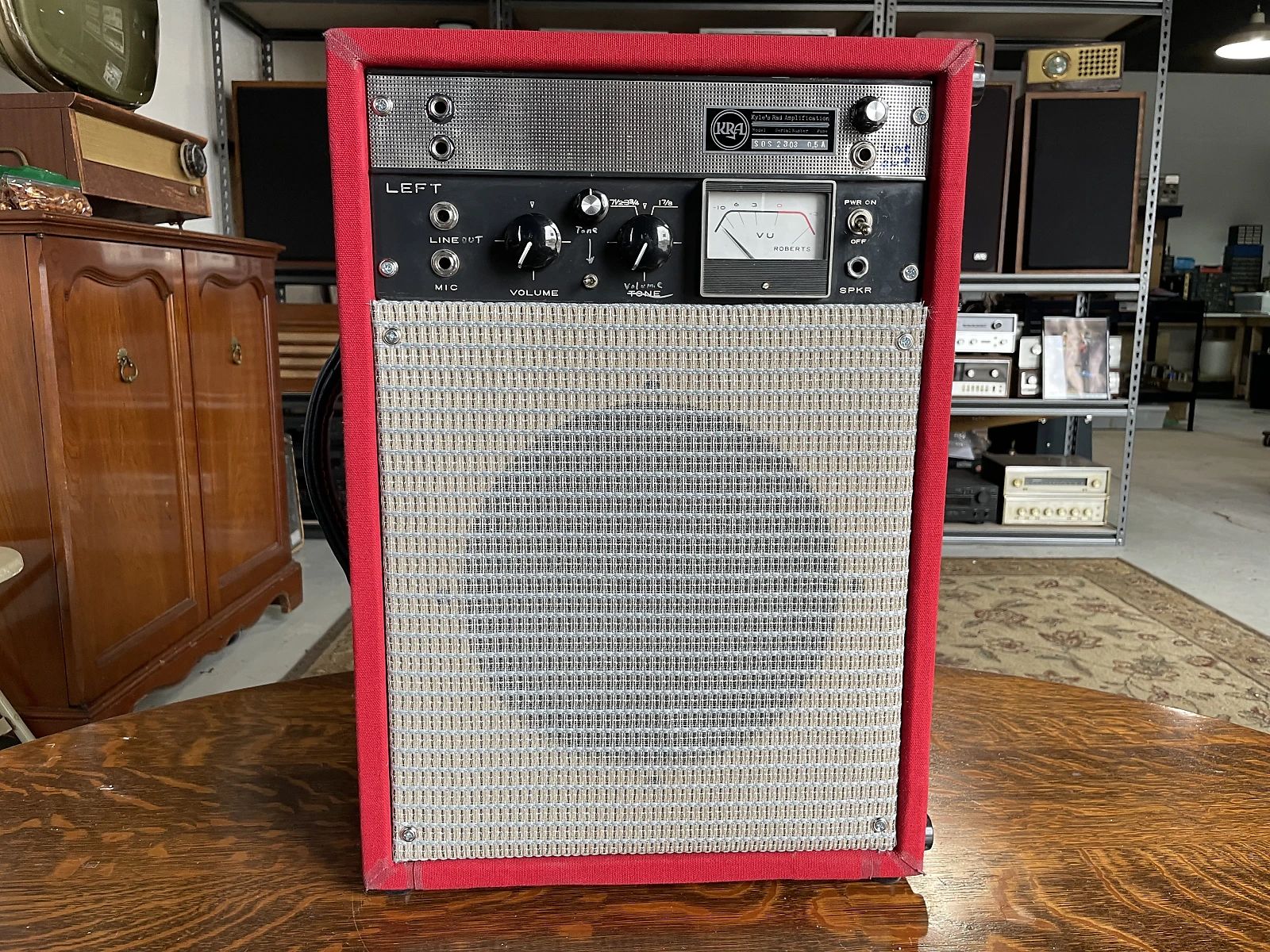

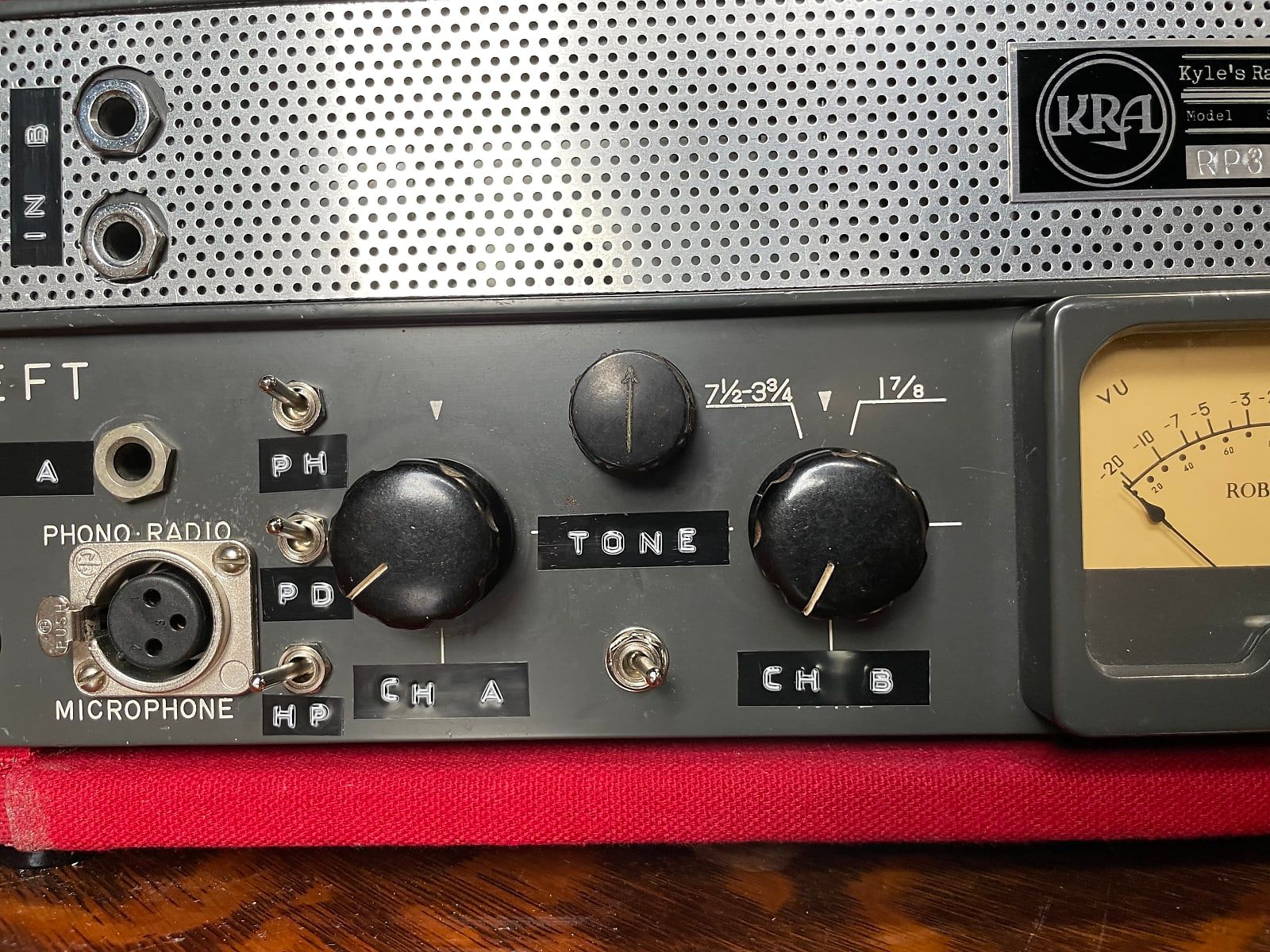

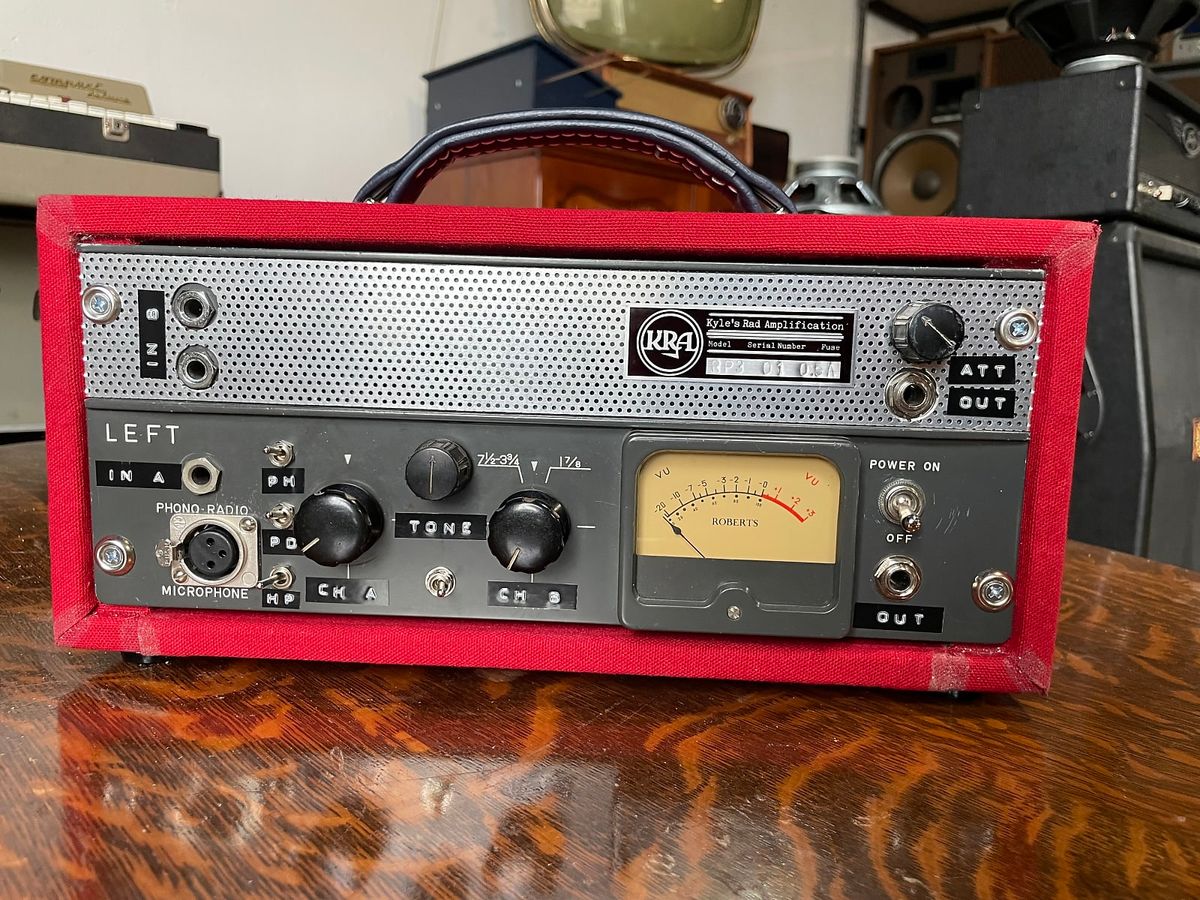

This model features two channels with mixing volume controls and a tone control switchable between the channels. Channel A features an xlr combo jack offering a transformer coupled mic input and guitar inputs to an ef86 preamp tube. Channel B features guitar level and unbalanced line level inputs to 1/2 of a 12ax7. Both channels are mixed together

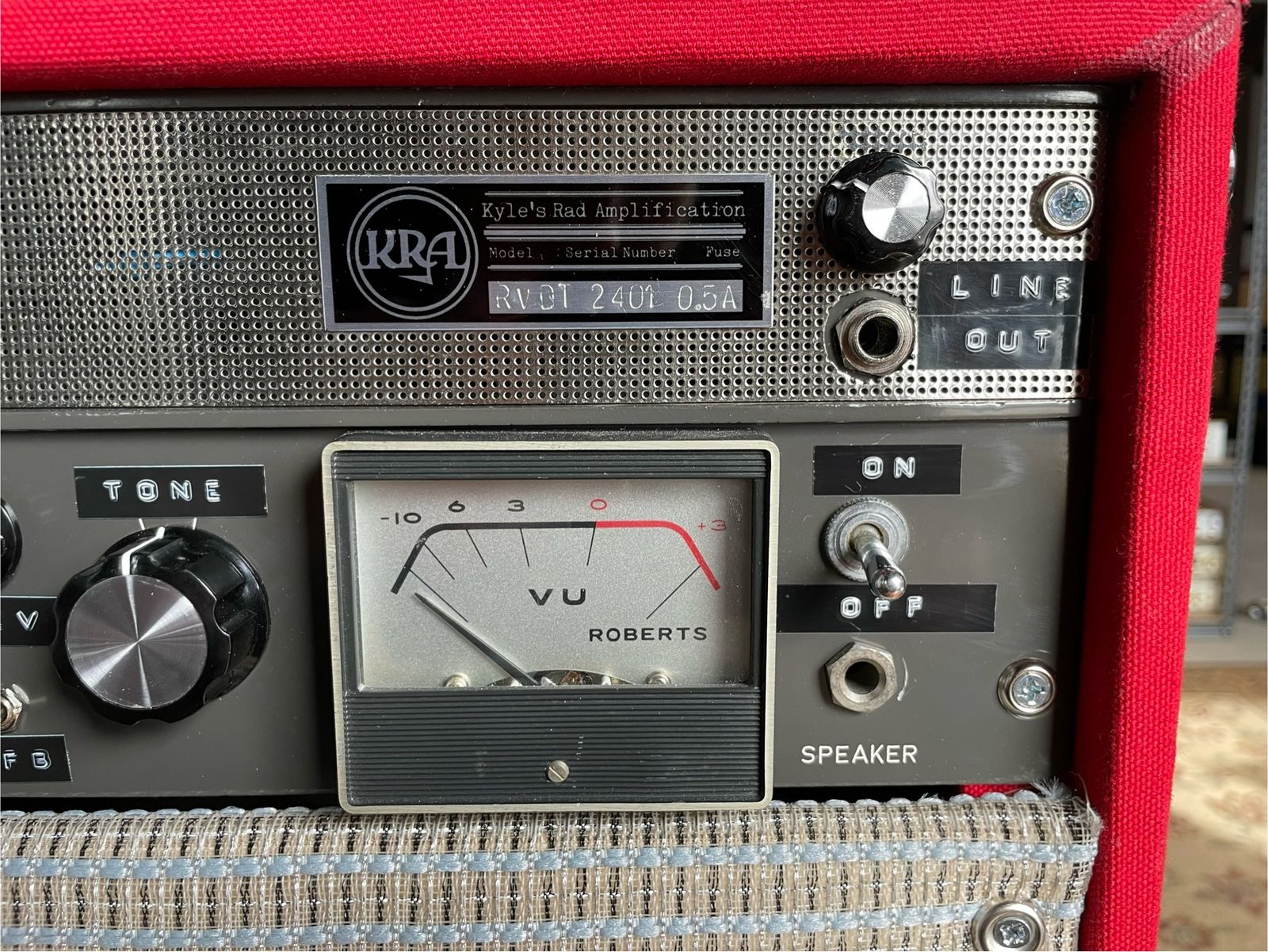

This model features two channels with mixing volume controls and a tone control switchable between the channels. Channel A features an xlr combo jack offering a transformer coupled mic input and guitar inputs to an ef86 preamp tube. Channel B features guitar level and unbalanced line level inputs to 1/2 of a 12ax7. Both channels are mixed together into the second half of the 12ax7 which drives the el84 and the cathode follower line level output. Channel A also has an output jack that is normally connected to the mixing resistor but will send a post-volume control level out into the world. This output can be chained into the B channel for cascaded gain stages with pre and post gain controls. Attenuated line output and 8 ohm (switched dummy load) speaker output are available at the right hand side of the amp.

This model features two channels with mixing volume controls and a tone control switchable between the channels. Channel A features an xlr combo jack offering a transformer coupled mic input and guitar inputs to an ef86 preamp tube. Channel B features guitar level and unbalanced line level inputs to 1/2 of a 12ax7. Both channels are mixed together

This model features two channels with mixing volume controls and a tone control switchable between the channels. Channel A features an xlr combo jack offering a transformer coupled mic input and guitar inputs to an ef86 preamp tube. Channel B features guitar level and unbalanced line level inputs to 1/2 of a 12ax7. Both channels are mixed together into the second half of the 12ax7 which drives the el84 and the cathode follower line level output. Channel A also has an output jack that is normally connected to the mixing resistor but will send a post-volume control level out into the world. This output can be chained into the B channel for cascaded gain stages with pre and post gain controls. Attenuated line output and 8 ohm (switched dummy load) speaker output are available at the right hand side of the amp.
